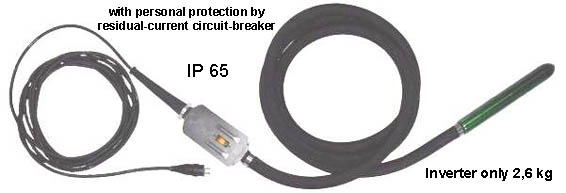

Vibrator Bottles PEA 30/37/47/57 (230)V with
Mini 4 Integrated Frequency Inverter

Mini 4 Mini 10 Mini 24 Mini 60 PEA 3.0 PEA 3.0 D PEA 4.0 PEA 4.0 D PEA 5.5 PEA 5.5 D PEA 7.5

  • The Mini 4 line can be connected directly to 230 V AC.
  • Light weight, compact and functionable for sites
  • Self insured by thermal, phase failure and overload protection
  • hPoker vibrator up from  0.8 m of protective hose possible
  • hInverter suitable as spare part
    • mountable to all 250 V AC vibrator bottles
    • hhighest output in the market




Mini 4 PEA 30

Mini 4 PEA 37

Mini 4 PEA 47

Mini 4 PEA 57

Dimensions inverter [mm]

210 x 123 x 75

Diameter vibrator bottle [mm]

31

39

50

59

Length vibrator bottle [mm]

320

370

390

360

Frequency [1/min]

12000

Amplitude [mm]

1,8

2,4

Centrifugal force [N]

1400

1500

3600

5400

Voltage [V]

230 / 1 Phase

Max. current [A]

3,5

3,7

6,1

7

Output [kVA]

0,8

0,85

1,4

1,7

Total weight [kg]

11,7

13

17

17,7
Standard realisation:
230 V three pin plug, 15m of cable, inverter with residual-current circuit-breaker,
 5m of protection hose, vibrator bottle with full thermal protection
